Multiple ways to upgrade a Solidity smart contract deployed on XDC Network

pragma solidity ^0.8.6;

contract sampleProxy {

  //two assembly memory slots locations
  bytes32 private constant _OWNER_SLOT = 0xb53127684a568b3173ae13b9f8a6016e243e63b6e8ee1178d6a717850b5d6103;
  bytes32 private constant _SMARTCONTRACTWITHLOGIC_SLOT = 0x360894a13ba1a3210667c828492db98dca3e2076cc3735a920a3ca505d382bbc;


  constructor() {
    bytes32 slot = _OWNER_SLOT;
    address _admin = msg.sender;
    assembly {
    //allows you to store a value in storage
      sstore(slot, _admin)
    }
  }


  //address of the owner
  function admin() public view returns (address owner) {
    bytes32 slot = _OWNER_SLOT;
    assembly {
      //read a value in storage
      owner := sload(slot)
    }
  }


  //address of the contract with business logic
  function SMARTCONTRACTWITHLOGIC() public view returns (address contractwithlogic) {
    bytes32 slot = _SMARTCONTRACTWITHLOGIC_SLOT;
    assembly {
      contractwithlogic := sload(slot)
    }
  }


  //function used to change the address of the contract containing business logic
  function upgrade(address newContract) external {
    //verify the sender is the admin
    require(msg.sender == admin(), 'You must be an owner only');
    bytes32 slot = _SMARTCONTRACTWITHLOGIC_SLOT;
    assembly {
      //store in memory the new address
      sstore(slot, newContract)
    }
  }


//user calls a function that does not exist in this contract so the fallback function is called
//assembly is used


  fallback() external payable {
    assembly {
      //get the address of the contract that contains business logic
      //save address in temporary memory
      let _target := sload(_SMARTCONTRACTWITHLOGIC_SLOT)
      //copy the function call in memory
      //first parameter is the memory slot we want to copy the function call to
      //second parameter is the memory slot we want to copy from
      //third parameter is the size we want to copy which is all data
      calldatacopy(0x0, 0x0, calldatasize())
      //forward the call to the smart contract that contains the business logic
      //specify the gas, address of contract, function we want to call and size
      //if the call is successful it will be stored in the bool result
      let result := delegatecall(gas(), _target, 0x0, calldatasize(), 0x0, 0)
      //copy the return data into memory
      returndatacopy(0x0, 0x0, returndatasize())
      //if the result is 0 and failed then revert
      switch result case 0 {revert(0, 0)} default {return (0, returndatasize())}
    }
  }
}

pragma solidity ^0.8.6;


contract smartContractV1 {
  uint public age;

//set
    function setAge(uint newAge) external {
        age = newAge;
    }
}

pragma solidity ^0.8.6;

//in the upgraded contract you need to keep all existing state variables in the same order
//add new state variables below existing state variables or you will overwrite data

contract smartContractV2 {
  uint public age1;
  uint public age2;

//set
    function setAge1(uint newAge1) external {
        age1 = newAge1;
    }

//set
    function setAge2(uint newAge2) external {
        age2 = newAge2;
    }
}

pragma solidity ^0.8.6;

//defined interface needed to interact with other contract
interface Ibusinesslogic {
  function getAge() external pure returns(uint);
}

contract MainContract {
  //set an admin address
  address public admin;
  //interface contract address
  Ibusinesslogic public businesslogic;
  //the admin is the owner
  constructor() {
    admin = msg.sender;
  }


  //function to upgrade the contract to point to execute function
  function upgrade(address _businesslogic) external {
    require(msg.sender == admin, 'only admin');
    businesslogic = Ibusinesslogic(_businesslogic);
  }


  //call the getAge function using the businesslogic function
  function getAge() external view returns(uint) {
    return businesslogic.getAge();
  }
}

pragma solidity ^0.8.6;

//defined interface needed to interact with other contract
interface Ibusinesslogic {
  function getAge() external pure returns(uint);
}

pragma solidity ^0.8.6;

//defined interface needed to interact with other contract
interface Ibusinesslogic {
  function getAge() external pure returns(uint);
}



pragma solidity ^0.8.6;

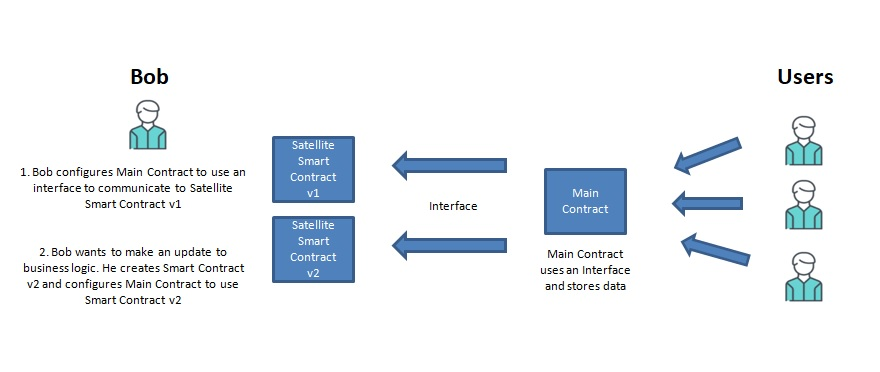

//satelliteV1 uses the Ibusinesslogic interface
contract satelliteV1 is Ibusinesslogic {
  function getAge() override external pure returns(uint) {
    return 25;
  }
}



pragma solidity ^0.8.6;

//satelliteV2 uses the Ibusinesslogic interface
contract satelliteV2 is Ibusinesslogic {
  function getAge() override external pure returns(uint) {
    return 32;
  }
}

pragma solidity ^0.8.6;

//this contract is used to store data

contract UserStorage {

    //a mapping to determine which contract has access to write data to this contract
    //used in the modifier below
    mapping(address => bool) accessAllowed;
    uint private age;


    //a basic mapping that allows one to set an address and a bool value
    //for example - is this address registered on the platform?
     mapping(address => bool) addressSet;

    //function modifier checks to see if an address has permission to update data
    //bool has to be true
    modifier isAllowed() {
        require(accessAllowed[msg.sender] == true);
        _;
    }

    //access is allowed to the person that deployed the contract
    function UserStorageAccess() public {
        accessAllowed[msg.sender] = true;
    }


    //set an address to the accessAllowed map and set bool to true
    //uses the isAllowed function modifier to determine if user can change data
    //this function controls which addresses can write data to the contract
    //if you update the UserContract you would add the new address here
    function allowAccess (address _address) isAllowed public {
         accessAllowed[_address] = true;
    }


    //set an address to the accessAllowed map and set bool to false
    //uses the isAllowed function modifier to determine if user can change data
    //this function controls which addresses need to have thier write access removed from the contract
    //if you update the UserContract you would set the old contract address to false
    function denyAccess (address _address) isAllowed public {
         accessAllowed[_address] = false;
     }


    //gets an address from the addressSet map and displays true or false
    function getAddressSet (address _address) public view returns(bool) {
         return addressSet[_address];
    }


    //sets an address to the addressSet map and sets the bool true or false
    //uses the isAllowed function modifier to determine if user can change data
    function setAddressSet (address _address, bool _bool) isAllowed public {
         addressSet[_address] = _bool;
    }


    //get the age from the age variable
    function getAge () public view returns (uint) {
        return age;
    }


    //set an age to the age variable
    //uses the isAllowed function modifier to determine if user can change data
    function setAge(uint newAge) isAllowed public {
        age = newAge;

    }
}

pragma solidity ^0.8.6;

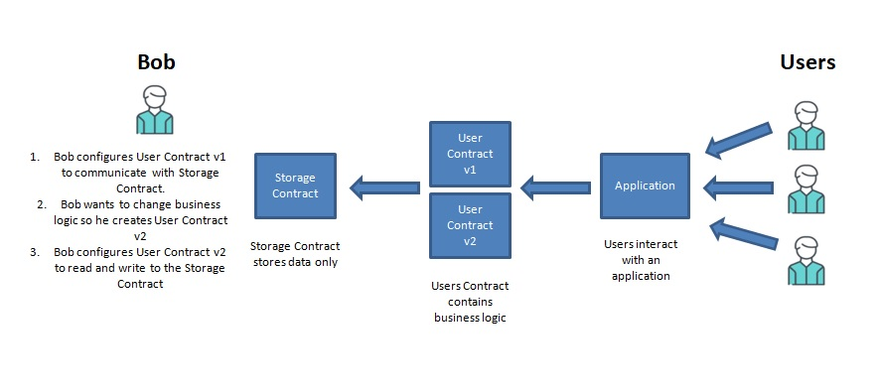

//logic is in the UserContract and data storage is in the UserStorage contract
//if we want to upgrade the usercontract we can and will not loose any data

contract UserContract {

    UserStorage userStorage;


    //set the address of the storage contract that this contract should user
    //all functions will read and write data to this contract
    function setStorageContract(address _userStorageAddress) public {
        userStorage = UserStorage(_userStorageAddress);
    }


    //reads the addressSet map in the UserStorage contract
    function isMyUserNameRegistered() public view returns(bool) {
        return userStorage.getAddressSet(msg.sender);
    }


    //writes to the addressSet map in the UserStorage contract
    function registerMe() public {
        userStorage.setAddressSet(msg.sender, true);
    }


    //set the age in the storage contract
    function setAge(uint newAge) public {
        userStorage.setAge(newAge);
    }


    //get the age in the storage contract
    function getAge() public view returns (uint){
        return userStorage.getAge();
    }
}
